Fig.2. RGA in a fully automatic mode,
with automatic zooming and autotermination.
The OF
is quite the same as before ( see the first
example).

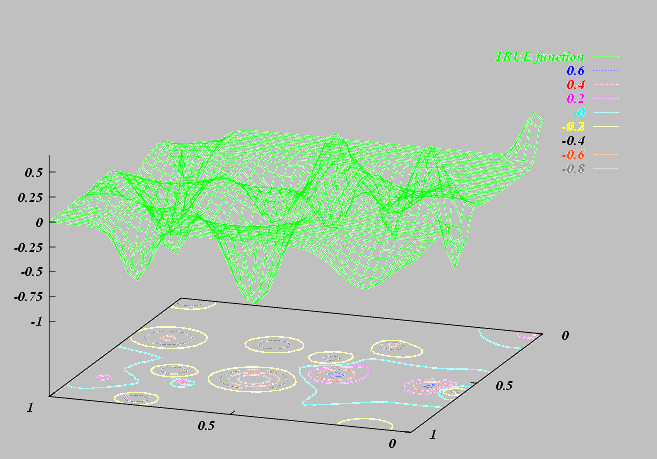

a) the true OF with global minimum
-0.9953 at the point (0.555, 0.665): grid 201x201;
b) the first movie is composed with 8 sequential tries
in [ 0.:1. ] x [ 0.:1.],

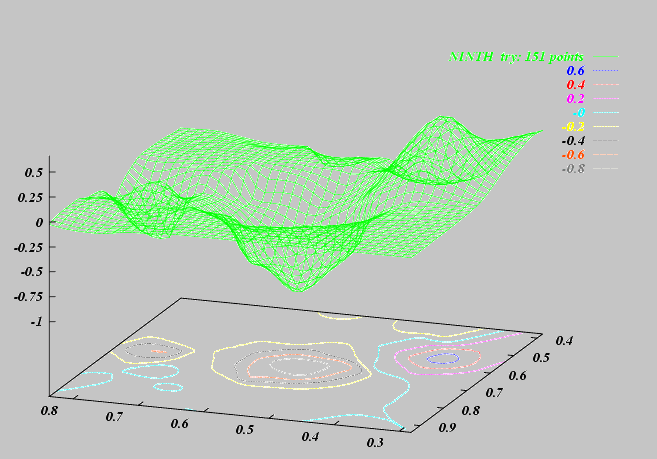

c) the second movie represents the first
zoom,
d) the final plot shows the second zoom right before RGA
-autotermination.
The global minimum was detected at the point (0.5562, 0.6624) with the value -0.9948.
Note, that RGA found this value, in fact, while the eighth try, but 'was not quite sure': a relevant criterion for quality of prediction had not been yet met.
a)
b)
c)
d)
* the
images are gathered also into the multipaged PDF-file
(~890 Kb)
 .
|
.  |
